Menjual Water meter Amico size 3/4 Inch Tipe LXSG-20E | Jual Meteran Air Amico murah
Call for Price
In StockWater meter
Merk: Amico
Size: dn 20 mm / 3/4 inchi
| WATER METER AMICO | |||||||
| WORKING CONDITION : | |||||||
| • Water Temperature : 50 deg | |||||||
| • Working Pressure : 1Mpa | |||||||
| • Specialist for Apartment | |||||||
| SPECIAL FEATURES : | |||||||
| • Large measuring range, high flow accuracy | |||||||
| • Steady curve Characteristic | |||||||
| • Performance is up to standards ISO 4064 | |||||||
| METER DESIGN : | |||||||
| • Solid and robust design, long service guaranteed | |||||||
| • Universal Interchangeable measuring insert | |||||||
| • Cleaning without breaking the seal is possible | |||||||
| • Dia, 15-40 mm connections with whitwort pipe thread | |||||||
| • Anti-magnet mechanism | |||||||
| NOMINAL DIAMETER | mm | 15 | 20 | 25 | 32 | 40 | |
| Inches | ½” | ¾” | 1” | 1 ¼” | 1 ½” | ||
| MAXIMUM FLOW RATE (Q MAX) | M3/h | 3 | 5 | 7 | 12 | 20 | |
| NOMINAL FLOW RATE (Qn) | M3/h | 1,5 | 2,5 | 3,5 | 6 | 10 | |
| TRANSITIONAL FLOW RATE (Qt) | M3/h | 0,12 | 0,2 | 0,28 | 0,48 | 0,8 | |
| MINIMUM FLOW RATE (Q Min) | M3/h | 0,03 | 0,05 | 0,07 | 0,12 | 0,2 | |
| ACCURACY WITHIN (Q Max – Q Min) | Q Max – Qt + 2 % | ||||||
| Q Max – Qt + 2 % | |||||||
| WORKING PRESSURE | BARS | 10 | 10 | 10 | 10 | 10 | |
| STARTING FLOW RATE | M3/h | 0,012 | 0,016 | 0,020 | 0,020 | 0,050 | |
| MAX READING | M3 | 999.999.999 | 9.999.999.999 | ||||
| MIN READING | M3 | 0,0001 | 0,001 | ||||
| INSTALATION POSITION | |||||||
Description

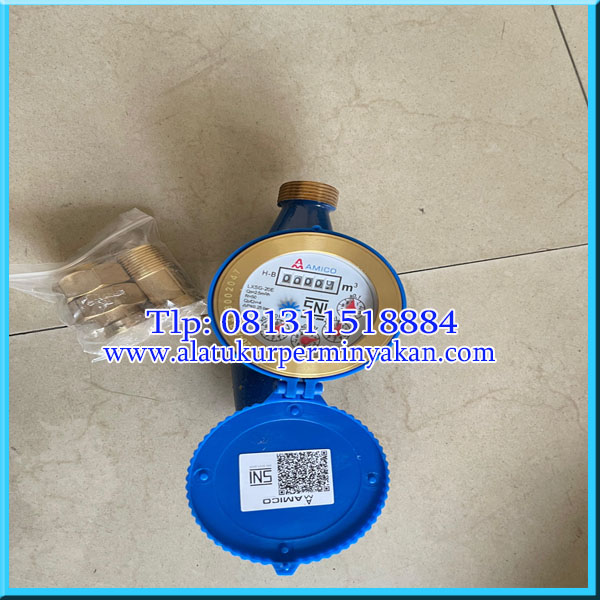

Water meter Amico size 3/4 Inch
Amico flowmeter 3/4 inch adalah alat untuk mengukur penggunaan air pada pipa – pipa yang telah dipasangi water meter,
Water meter Amico size 3/4 Inch
Tampilan yang simple dan akurasi yang sangat baik adalah salah satu yang membuat water meter merk amico sangat banyak dipakai.
Water meter jakarta, meteran air jakarta, water flow meter amico, amico meteran air, water meter merk amico, terdiri dari size 1/2 “3/4,1,1,5” 2,3,4,5,6,8 dan 12 Inch
water meter murah dijakarta, meteran air jakarta, jual water meter amico termurah dijakarta
www.alatukurperminyakan.com adalah salah satu agen atau suplayer penjual produk Water meter Merk AMICO dijakarta ataupun di indonesia.
Produk kami lainnya : Jual Water Flow meter limbah merk DK Flow
