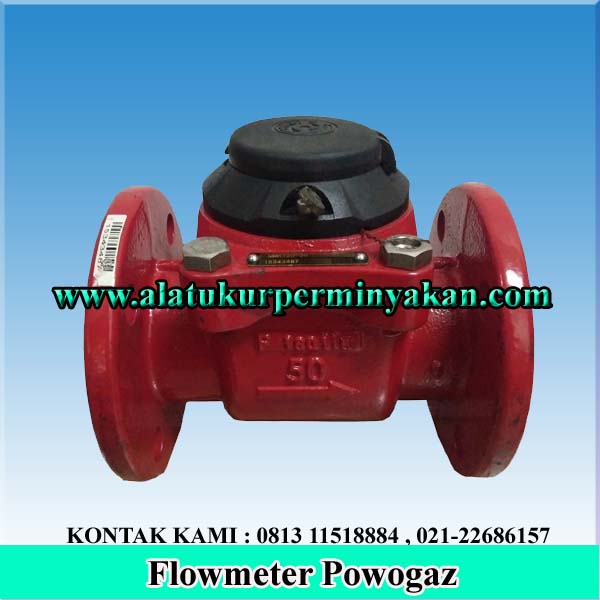

Powogaz water meter air panas size 2 inch | jual water meter powogaz

Description

Powogaz water meter air panas size 2 inch jual watermeter

MWN NUBIS | MWN-NK | MWN-NO | MWN-NKO | MWN-NKOP
MWN130 NUBIS | MWN130-NK | MWN130-NKP powogaz hota water meter
Propeller water meters (woltman) with horizontal rotor axis (DN40-500)
Application
For measuring of consumption of greater amounts of cold water with a
temperature up to 30°C or 50°C, or hot water with a temperature up to
130°C, on the maximum working pressure up to 16 bar (PN16). Suitable
for installation in the horizontal hoses (pipelines) with the counter directed upwards (H), in vertical or horizontal hoses with the counter directed
sidewards (V) or in diagonal hoses (H/V). MWN water meters in standard version are equipped with six-barrel counter (IP66, IP68 – optional)
and painted cast-iron housing. Water meters are adapted to operation in
the systems of remote data transfer (AMR).

Powogaz water meter air panas size 2 inch jual watermeter

Measurement range (MID):
MWN / MWN130
„ Cold water R100÷200 – H, V
„ Warm water R25÷40 – H, V
MWN-G / MWN130-G
„ Cold water R100 – H, V
„ Warm water R40 – H, V

Product features
„ Preequipped for installation of: radio module for communication in the Wireless M-Bus and impulse module (not applicable
to water meters for hot water and versions with NK, NO, NKO and NKOP transmitters)
„ Wide measuring range
„ Low starting rate
„ Removable measuring panel
„ Double-sided rotor bearing
„ Easy reading of the water meter counter
„ Hermetic counter – IP68 on request ****)
„ Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
„ Readings reliability
„ In special option housing with connection for pressure measurement DN50-300 (cold and hot water)
„ Optional version for demineralised water DN40-125 (cold and hot water)
„ On request possibility of another drilling
