Jual onda water meter 1/2 inchi | Water meter onda DN 15 mm| Jual meteran air onda
Call for Price

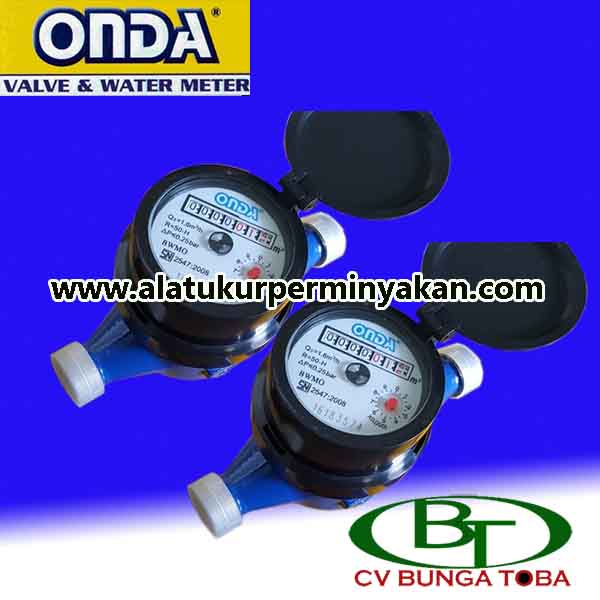

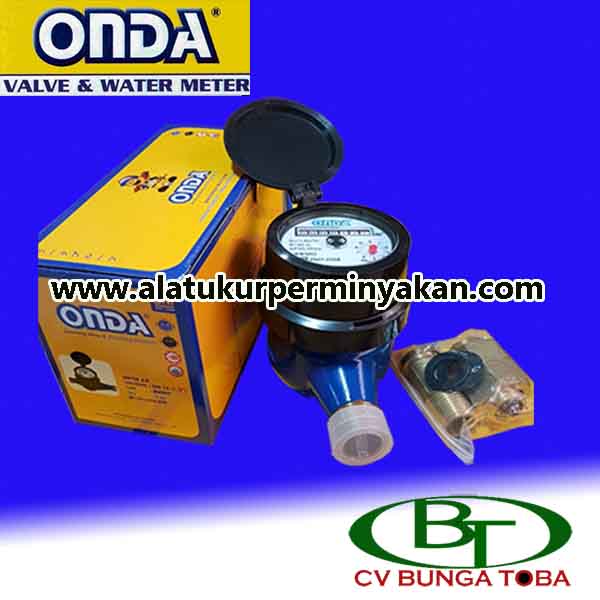

In StockWater Meter Onda 1/2 Inch 15mm – WATER METER ONDA 1/2 INCH 15mm – Jual Meteran Air Onda 1/2″ 15mm – Supplier Flow Meter Onda
SPESIFIKASI
Nominal Diameter DN : 15 mm
Nominal Pressure PN : 10 bar
Smallest Readable Vol. : 0.1
Registration Capacity : 99999 m³
Operating Temperature Max : 50 °C
Max. Flow Rate QMax : 3 m³/h
Nominal Flow Rate Qn : 1.5 m³/h
Transitional Flow Rate Qt : 0.12 m³/h
Min. Flow Rate QMin : 0.03 m³/h
Error Limit Qmax : <±2 %
Error Limit Qmin : <±5 %
Description
Jual onda water meter dn 15 mm flow meter onda
Harga Flow meter onda
onda water meter air ukuran 1/2 inch producing high quality flow meters since 19 in the WATER measurement fi eld. Our fl owmeters are used in a wide variety of applications including measuring of boiler fuel oil and diesel oil, as well as for transactions for kerosene, light oil and heavy oil. We have been serving numerous customers with accurate, compact, and excellent durability fl owmeters.
Features :
● High accuracy
● Compact design The flowmeter is compactly designed, yet the indicator is easy to read.
●Excellent durability Simple structure enables long term durability with virtually no degradation of accuracy.
Harga onda flow meter Air
- onda water meter dn 15 mm kuningan
- flow meter onda ukuran 1/2 inch kuningan
onda water meter air
- ‐ Easy Installation and Maintenance
‐ Dry Dial, Magnetic Drive
‐ High Bypass and Very Low Head Loss
‐ Glass Vacuum Sealed Register -Free
from Condesation and clear for long term
‐ Working Temperature 0.10C – 500C for
Cold and 0.10C – 900C for Hotwater
‐ Max Pressure: 16 Bar
‐ Maximum Error : +/- 2%
‐ Selected High Quality Materials
‐ Iso 4064
‐ SNI
Jual onda water meter dn 15 mm flow meter onda
ONDA ukuran 1/2" 3/4" 1" inch dengan Adjuster untuk aplikasi WATER, flow meter digunakan untuk mengukur volume air yang akan digunakan.berbagai macam merek flow meter yang sering kita jumpai, seperti flow meter AMICO, flow meter SENSUS, Flow meter Avery Hardoll, dan masih banyak lainnya.salah satu flow meter dengan akurasi yang bagus adalah merk ONDA, flow meter ONDA kami jual dan berbagai ukuran tergantung kebutuhan anda. Flow meter AIR Merk ONDA adalah salah satu flow meter Air limbah yang berfungsi untuk mengetahui penggunaan air atau seberapa liter atau meter kubik air yang telah melewati alat ini.Flow meter air Merk ONDA sangat banyak digunakan di pabrik, perusahaan industri, Pertamina, PLN, baik perusahaan lainnya yang menggunakan air sebagai salah satu media yang dibutuhkan.
Data Sheet :
Size Diameter : 1/2″ 3/4″ 1″ inch
‐ Easy Installation and Maintenance
‐ Dry Dial, Magnetic Drive
‐ High Bypass and Very Low Head Loss
‐ Glass Vacuum Sealed Register -Free
from Condesation and clear for long term
‐ Working Temperature 0.10C – 500C for
Cold and 0.10C – 900C for Hotwater
‐ Max Pressure: 16 Bar
‐ Maximum Error : +/- 2%
‐ Selected High Quality Materials
‐ Iso 4064
‐ SNI
