Call for Price

In Stock

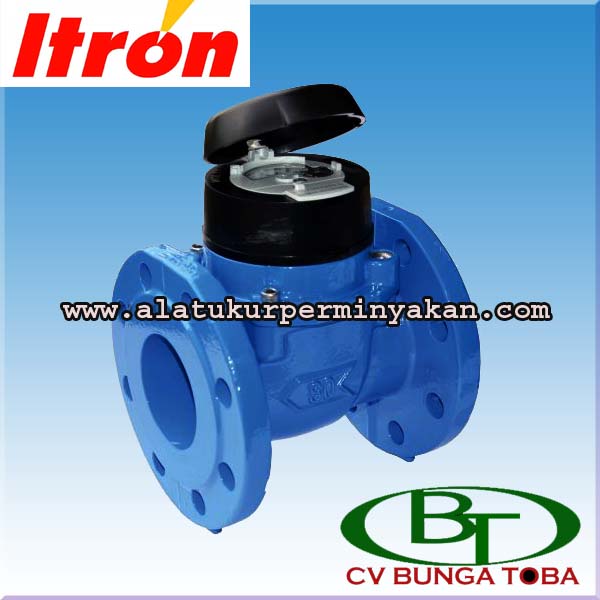

Jual Water meter Itron

Merk: Itron

Size: 3 inchi / dn 80 mm

KATALOG ITRON : Itron_Woltex

Starting flowrate m3/h = 0,3
Accuracy ± 2% from*m3/h= 1,2
Accuracy ± 5% from*m3/h= 0,75
Admissible peak flow (10’ max) m3/h = 250
Max. admissible flowrate (continuous)m3/h = 120
Head loss at Qmax bar = 0,55
Max. admissible temperature °C = 50
Max. admissible pressure bar = 20
Min. scale interval L = 20
Indicating range m3 = 99999999

Compare
Tag:

Description

Distributor water meter itron 3 Inchi woltex dn 80 mm

Distributor water meter itron 3 Inchi woltex dn 80 mm
Distributor water meter itron 3 Inchi woltex dn 80 mm

Harga Flow meter ITRON 3 INCH WOLTEX

itron water meter air limbah 3 inchi dn 80 mm high quality flow meters since  in the WATER measurement fi eld. Our fl owmeters are used in a wide variety of applications including measuring of boiler fuel oil and diesel oil, as well as for transactions for kerosene, light oil and heavy oil. We have been serving numerous customers with accurate, compact, and excellent durability fl owmeters.

Features :

● High accuracy Accuracy is within ±0.2%  Fluid is directly measured by turbin , enabling accurate measuring.

● Compact design The flowmeter is compactly designed, yet the indicator is easy to read.

Excellent durability Simple structure enables long term durability with virtually no degradation of accuracy.

Harga ITRON flow meter Air BERSIH

  • flow meter air merk itron ukuran 3 inch tipe woltex
  • water meter merk itron dn 80 mm tipe woltex

itron water meter air bersih

  • ‐ Easy Installation and Maintenance
    ‐ Dry Dial, Magnetic Drive
    ‐ High Bypass and Very Low Head Loss
    ‐ Glass Vacuum Sealed Register -Free
    from Condesation and clear for long term
    ‐ Working Temperature 0.10C – 500C for
    Cold and 0.10C – 900C for Hotwater
    ‐ Max Pressure: 16 Bar
    ‐ Maximum Error : +/- 2%
    ‐ Selected High Quality Materials
    ‐ Iso 4064
    ‐ Warranty

Distributor water meter itron 3 Inchi woltex dn 80 mm

ITRON ukuran 2,3,4 inch dengan Adjuster untuk aplikasi WATER,  flow meter digunakan untuk mengukur volume air yang akan digunakan.berbagai macam merek flow meter yang sering kita jumpai, seperti flow meter AMICO, flow meter SENSUS, Flow meter Avery Hardoll, dan masih banyak lainnya.salah satu flow meter dengan akurasi yang bagus adalah merk ITRON, flow meter ITRON kami jual dan berbagai ukuran tergantung kebutuhan anda.
Flow meter AIR Merk ITRON adalah salah satu flow meter Air limbah yang berfungsi untuk mengetahui penggunaan air atau seberapa liter atau meter kubik air yang telah melewati alat ini.Flow meter air Merk ITRON sangat banyak digunakan di pabrik, perusahaan industri, Pertamina, PLN, baik perusahaan lainnya yang menggunakan air sebagai salah satu media yang dibutuhkan.

Data Sheet :

Size Diameter                                          : 1/2″ 3/4″ 1″ 1,5″ 2″3″4″5″6″”8″ inch
‐ Easy Installation and Maintenance
‐ Dry Dial, Magnetic Drive
‐ High Bypass and Very Low Head Loss
‐ Glass Vacuum Sealed Register -Free
from Condesation and clear for long term
‐ Working Temperature 0.10C – 500C for
Cold and 0.10C – 900C for Hotwater
‐ Max Pressure: 16 Bar
‐ Maximum Error : +/- 2%
‐ Selected High Quality Materials
‐ Iso 4064
‐ Warranty
