Harga Powogaz flow meter 6 inch dn 150 mm / Water Meter powogaz

Description

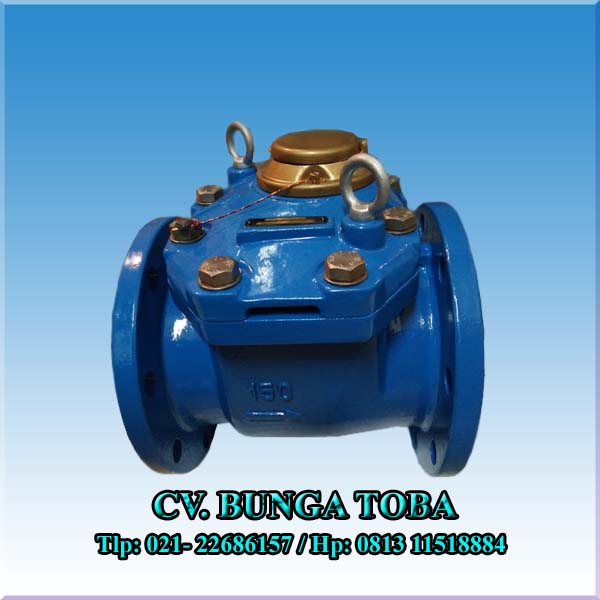

Harga Powogaz flow meter 6 inch dn 150 mm

Powogaz water meter dn 150 mm 6 inch PROPELLER WATER METERS (WOLTMAN) WITH HORIZONTAL ROTOR AXIS (DN40-500)
APPLICATION
For measuring of consumption of greater amounts of cold water with
a temperature up to 30°C or 50°C, or hot water with a temperature
up to 130°C, on the maximum working pressure up to 16 bar (PN16).
Suitable for installation in the horizontal hoses (pipelines) with the
counter directed upwards (H), in vertical or horizontal hoses with
the counter directed sidewards (V) or in diagonal hoses (H/V). MWN
water meters in standard version are equipped with six-barrel counter
(IP65, IP68 – optional) and painted cast-iron housing. Water meters
are adapted to operation in the systems of remote data transfer (AMR).

Harga Powogaz flow meter 6 inch dn 150 mm

METROLOGICAL CLASS (MID):
MWN / MWN130
Cold water R100÷200 – H, V
Warm water R25÷40 – H, V
MWN-G / MWN130-G
Cold water R100 – H, V
Warm water R40 – H, V

PRODUCT FEATURES
Preequipped for installation of: radio module for communication in the Wireless M-Bus and impulse module (not
applicable to water meters for hot water and versions with NK, NO, NKO and NKOP transmitters)
Wide measuring range
Low starting rate
Removable measuring panel
Double-sided rotor bearing
Easy reading of the water meter counter
Hermetic counter – IP68 on request ****)
Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
Readings reliability
In special option housing with connection for pressure measurement DN50-300 (cold and hot water)
Optional version for demineralised water DN40-125 (cold and hot water)
On request possibility of another drilling
MWN; mwn 130
