Call for Price

In Stock

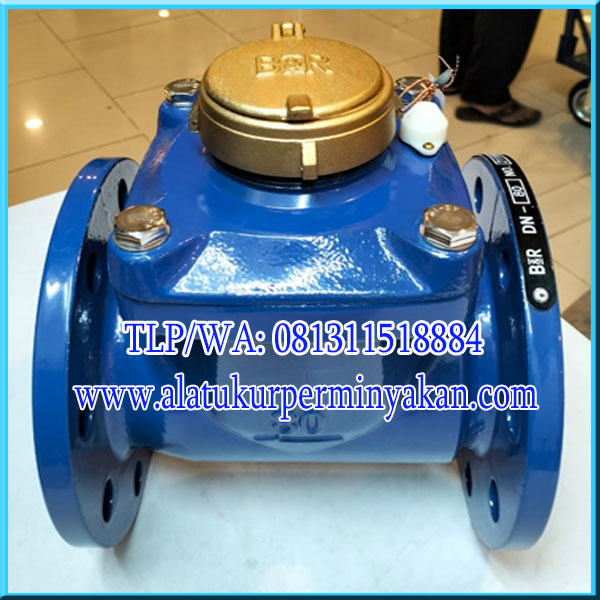

Water meter

Merk: B&R

Size: DN 80 mm / 3 Inchi

Spesifikasi water meter BR 3 inch 80mm
Water Meter BR 3 inch 80mm

Measuring Class : A . B
Nominal Flowrate Qn : 15
Minimum Flowrate Qmin : 3.2 , 1.2
Transitional Flowrate Qt : 12 , 8
Min.Reading : 0.01
Max. Reading : 999999,99

Katalog: Katalog-BR
Compare

Description

Jual water meter BR 3 inch Fozhou meteran air

br 3 Inch water meter
br 3 Inch water meter

Harga Flow meter BR/B&R

BR water meter air 3 inchi dn 80 mm high quality flow meters since 19 in the WATER measurement fi eld. Our fl owmeters are used in a wide variety of applications including measuring of boiler fuel oil and diesel oil, as well as for transactions for kerosene, light oil and heavy oil. We have been serving numerous customers with accurate, compact, and excellent durability fl owmeters.

Features :

● High accuracy Accuracy is within

● Compact design The flowmeter is compactly designed, yet the indicator is easy to read.

Excellent durability Simple structure enables long term durability with virtually no degradation of accuracy.

Harga br/b&r flow meter Air

  • flow meter br/b&r fozhou 3 inch
  • water meter br/b&r fozhou dn 80 mm

shm water meter air limbah

  • ‐ Easy Installation and Maintenance
    ‐ Dry Dial, Magnetic Drive
    ‐ High Bypass and Very Low Head Loss
    ‐ Glass Vacuum Sealed Register -Free
    from Condesation and clear for long term
    ‐ Working Temperature 0.10C – 500C for
    Cold and 0.10C – 900C for Hotwater
    ‐ Max Pressure: 16 Bar
    ‐ Maximum Error : +/- 2%
    ‐ Selected High Quality Materials
    ‐ Iso 4064
    ‐ Warranty 2 Year

Jual water meter BR 3 inch Fozhou meteran air

BR ukuran 2,3,4 inch dengan Adjuster untuk aplikasi WATER,  flow meter digunakan untuk mengukur volume air yang akan digunakan.berbagai macam merek flow meter yang sering kita jumpai, seperti flow meter AMICO, flow meter SENSUS, Flow meter Avery Hardoll, dan masih banyak lainnya.salah satu flow meter dengan akurasi yang bagus adalah merk BR, flow meter BR kami jual dan berbagai ukuran tergantung kebutuhan anda.
Flow meter AIR Merk BR adalah salah satu flow meter Air  yang berfungsi untuk mengetahui penggunaan air atau seberapa liter atau meter kubik air yang telah melewati alat ini.Flow meter air Merk shm sangat banyak digunakan di pabrik, perusahaan industri, Pertamina, PLN, baik perusahaan lainnya yang menggunakan air sebagai salah satu media yang dibutuhkan.

Data Sheet :

Size Diameter                                          : 2″3″4″5″6″”8″ inch
‐ Easy Installation and Maintenance
‐ Dry Dial, Magnetic Drive
‐ High Bypass and Very Low Head Loss
‐ Glass Vacuum Sealed Register -Free
from Condesation and clear for long term
‐ Working Temperature 0.10C – 500C for
Cold and 0.10C – 900C for Hotwater
‐ Max Pressure: 16 Bar
‐ Maximum Error : +/- 2%
‐ Selected High Quality Materials
‐ Iso 4064
‐ Warranty 2 Year
