Jual water meter air panas

Flow meter / water meter

Merk: Sensus

Temperatur: 130°C

Size: 3 Inch

Hubungi: Belman

HP/WA : 081311518884

Type: wp dynamic

Temperatur : 130

Compare

Description

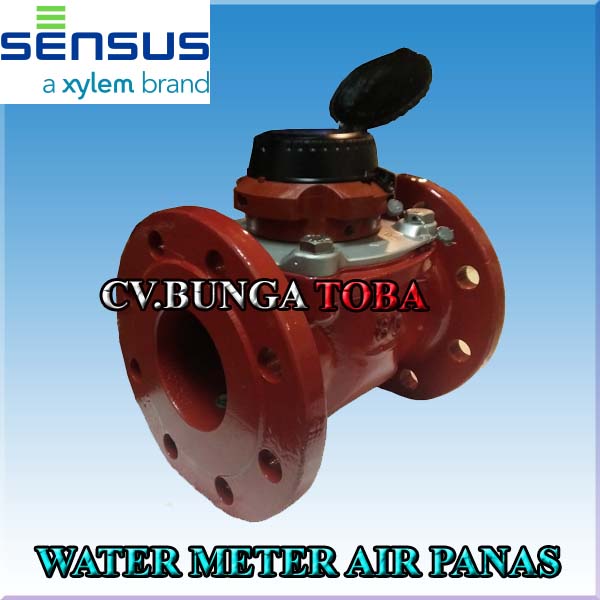

flowmeter air panas hot water meter sensus 3 inch

flowmeter air panas hot water meter sensus 3 inch
flowmeter air panas hot water meter sensus 3 inch

Description
The Sensus WP-Dynamic 130-Deg is a helical style water meter for hot water applications up to 130°C. It is suitable for measuring high, relatively constant flow rates, and is designed to be robust and reliable.

Make enquiry

flowmeter air panas hot water meter sensus 3 inch

Diameter Nominal DN 40 50 65 80 100 125 150 200 250 300
Size of meter (acc. to PTB-A22) Qn 10 15 25 40 60 100 150 250 400 600
Qmax maximum peak flow
once in life time 24 h Qmax m3/h 20 30 60 90 140 200 300 500 1000 1200
or 5 min. 1.2 x Qmax
Qn continuous flow (+ 3%) m3/h 10 15 25 45 70 100 150 250 500 600
Qt transitional flow (+ 3%) m3/h 1.8 1.8 2.0 3.2 4.8 8.0 12 20 45 50
Qmin minimum flow (+ 5%) m3/h 0.6 0.6 1.0 1.4 2.0 3.5 4.5 8 20 25
starting flow m3/h 0.25 0.25 0.3 0.35 0.6 1.1 1.7 2.0 10 15

Patented hydrodynamically balanced rotor
Patented symmetrical calibration adjustment
Hermetically sealed register (IP 68)
Register may be rotated through 360°
High overload capability
Pattern approved removable measuring element
Up to 3 pulsers (1 x OD, 2 x RD) may be fitted
without breaking the approval seal
Powder coating affords max. corrosion protection

Application
Measurement of high, relatively constant flow rates

flowmeter air panas hot water meter sensus 3 inch / sensus wp dynamic / distributor water meter air panas / water meter sensus 130 / hot water meter dn 80

Water meter sensus wp dynamic size 2 inch sampai 8 inch water meter air panas,

flowmeter air panas hot water meter sensus 3 inch / sensus wp dynamic / meteran air panas
