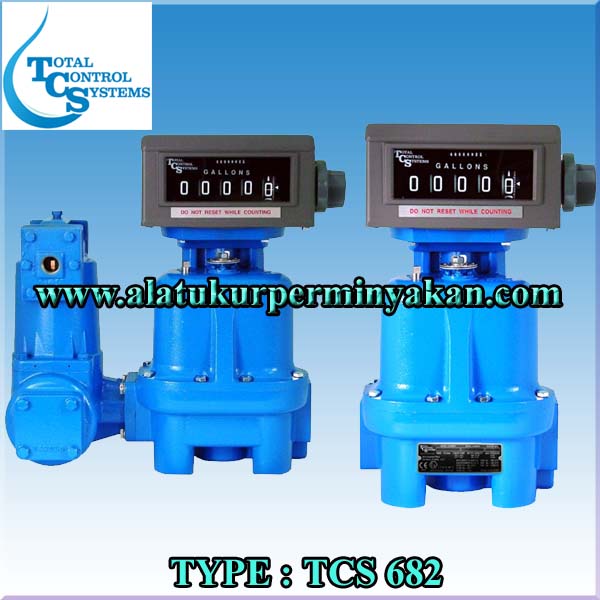

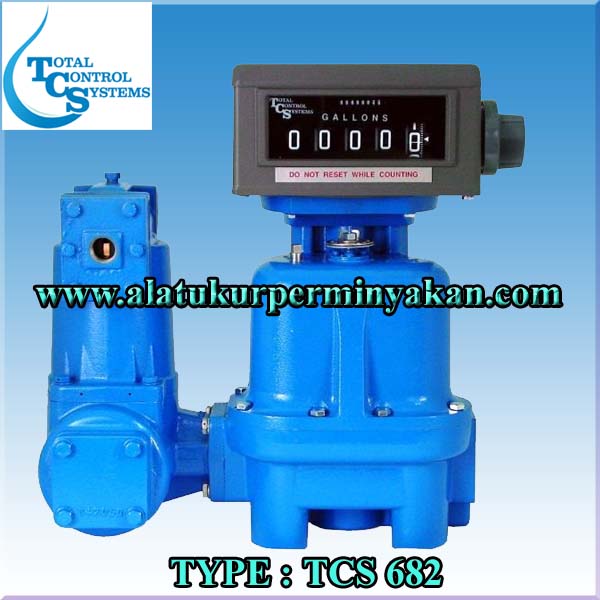

TCS 682 Total Control System Flowmeter minyak solar
Call for Price
In StockTCS 682 Total Control System Flowmeter minyak solar
Material | Cast Iron |
Size | 1-1/2″ |
Warranty | 1 Year |
Max Flow Rate | 50 GPM |
Dimensions | 38.5″ x 18.5″ x 44.75″ |
Weight | 101 lbs. |
Description
TCS 682 Total Control System Flowmeter minyak solar
TCS 682 Total Control System Flowmeter minyak solar
- Satam oil Flow meter
- Meteran solar satam
Meteran Minyak Satam
TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar, TCS 682 FLOW Meter minyak solar. Total control system TCS 682 Flowmeter minyak, Total control system TCS 682 Flowmeter minyak, Total control system TCS 682 Flowmeter minyak, Total control system TCS 682 Flowmeter minyak , Total control system TCS 682 Flowmeter minyak, Total control system TCS 682 Flowmeter minyak Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system, Flow meter solar merk TCS TOTAL CONCTROL system.
Data Sheet :
DESIGN PRINCIPLE
The 682 series flow meter is a true positive displacement
meter that has a unique inline design consisting of three
(3) reciprocating pistons operating within their respective
measuring chambers, where each piston works in a
manner similar to an automobile engine. The pistons are
fitted to a wobble plate, which has a shaft extending
from its upper surface and a valve pivot attached beneath
it. The valve pivot drives a sliding valve from piston to
piston as a known amount of product flows through each
cylindrical bore, controlling the sequence of events in a
smooth mechanical motion. This smooth mechanical
motion is then transferred through the calibrator to the
register.
AIR A float and stop valve design senses and removes free air or vapor before it can
ELIMINATOR enter the flow meter.
STRAINER A 90° strainer provides protection from debris entering into the flow meter.
Stainless Steel screens are available in 40 mesh.
PRESET VALVE A normally closed, control valve allows for auto-batch preset deliveries.
Mechanical or Electronic actuated control valves are available.
REGISTRATION OPTIONS
COUNTER REGISTER Large Numeral Counter (LNC) indicating the measurement in volume, using a 5 digit large numeral reset display and an 8 digit
non-reset totalizer. Electronic or mechanical counter registers are available.
Material | Cast Iron |
Size | 1-1/2″ |
Warranty | 1 Year |
Max Flow Rate | 50 GPM |
Dimensions | 38.5″ x 18.5″ x 44.75″ |
Weight | 101 lbs. |
TCS 682AF 1-1/2″ Cast Iron Meter & Register (0.2-40 GPM). This meter is 1-1/2″ piston positive displacment meter designed for the measurement of ag chemical petroleum and a multitude of other industrial liquids.Basic construction consists of cast iron housing stainless steel and iron internal parts teflon gaskets. Weights & Measures approved (NTEP). 2 to 50 GPM Slow flow accuracy within .1%.
