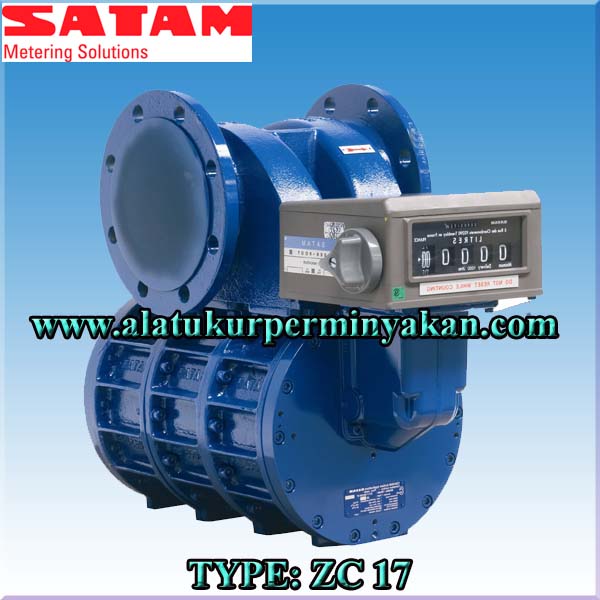

jual flowmeter satam zc 17 oil flow meter solar

Technical data
Model ZC17 12 ZC17 24 ZC17 48 ZC17 80 ZC17 150 ZC17 250 ZC17 330
Max. Flowrate (m3/h /LPM/USGPM)
Min. Flowrate (m3/h /LPM/USGPM)
Application Multi-product metering
Connections Flanges ASA150 2’’ 2’’ 2’’ 3’’ 4’’ 6’’ 8’’
Flanges TW TW1 TW3
Materials Manifold Aluminum Steel or Aluminum Steel
Casing Aluminum Ductile iron or Ni resist iron
Front and back flanges Nickel steel
Rotor Aluminum
Blades Graphite
Gaskets Viton (option nitrile)
Operating conditions Pressure 0 to 10 bar / 0 to 150 PSI
Viscosity Maxi : 800 mPa.s
Liquid temperature -40°C (-40°F) to +60°C (+140°F)
Ambient temperature -40°C (-40°F) to +60°C (+140°F)
Pressure drop Max 0,5 bar
Internal construction Cyclic volume (litres/USG) 0,33/0.08 0,40/0.10 0,80/0.21 2,27/0.6 4,54/1.12 6,82/1.8 9.09/2.4

Add to Wishlist
Compare

Description

jual flowmeter satam zc 17 oil flow meter solar

jual flowmeter satam zc 17 oil flow meter solar
jual flowmeter satam zc 17 oil flow meter solar

Satam Flowmet

jual flowmeter satam zc 17 oil flow meter solar

  • Satam oil Flow meter
  • Meteran solar satam

Meteran Minyak Satam

Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17, Satam flow meter minyak  solar type ZC 17.

Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam, Jual flow meter minyak solar merk satam

Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17, Meteran minyak solar satam zc 17

Data Sheet :

Size Diameter                                          :

Specifications
ZC17.80/250

  • SATAM SAS type ZC17/250 flowmeter with Veeder Root reset register and Veeder Root pulse transmitter signal to IAS
  • Materials: House: NI.-Resist ASTM 436 Type II
    *End Cover: Steel
    *Wings: Carbon
  • Dimensions: DN150  – PN10/16
  • Flow range: 25-250  m3/h
  • Accuracy: +/- 0,2%
  • Repeatability: +/- 0,025%
  • Max Temperature: 120ºC
  • Max pressure: 10 bar
  • Output signal: Pulse transmitter type Veeder Root
  • Flowdirection: Right to left / Left to Right

APPLICATION

1. Sectors of application
• Oil depots
For oil product reception and loading stations for trucks
• Hydrocarbon transportation
Distribution of fuel oil or fuel by road tanker
• Aircraft refuelling
Aircraft dispensers and aircraft fuelling tankers
• Army
Depot supplies and loading of trucks
• Transport companies
Refuelling of locomotives, trucks and public transport coaches
• Marine applications
Refuelling of ships
• Mining sites
Refuelling of trucks or site machinery

2. Operating principle
The product enters the measuring chamber following the direction
of the arrow. The rotor and blades assembly (1-2) is set in motion
by the pressure of the liquid on blades. A certain amount of liquid
(3) is held between 2 blades and then directed to the discharge
manifold. The volume of liquid measured at each rotation is
therefore equal to 4 times the measured quantity (3). The smooth
curves the meter pieces provide a steady, non-fluctuating flow
resulting in low head loss.
