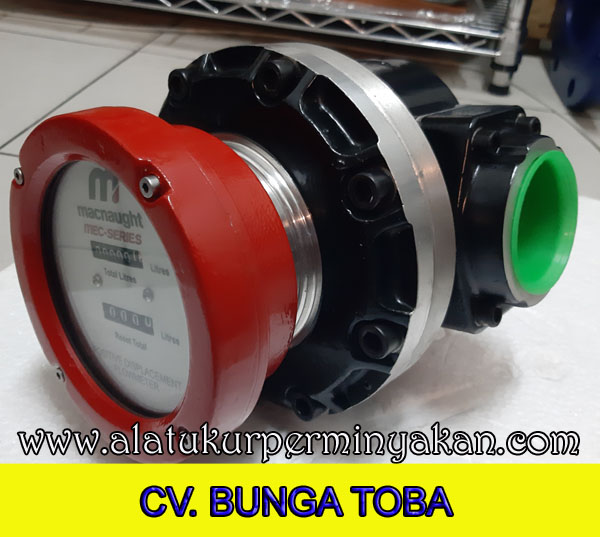

Jual Flow meter Macnaught MEC SERIES 2 Inchi

Description

Jual Flow meter Macnaught MEC SERIES 2 Inchi

flow meter solar macnaught 2 inch

Jual Flow meter Macnaught MEC SERIES 2 Inchi

Specifikasi:

Merk Flowmeter : Macnaught

Type: M50-FO25-3S4

Flow Range : 15-350 LPM

Max Pressure : 1000 KPA

Max Temperatur : 80° C

Size: 2 inch / dn 50 npt

Flow meter Macnaught MEC SERIES 2 Inchi

Macnaught are positive
displacement oval gear flowmeters that are designed to
cover a broad range of industrial fluid measurement
applications. With versionscovering high temperature,
high pressure, as well as hazardous locations, there is a
Macnaught Industrial flowmeter to fitvirtually any
industrial liquid measurement requirement.

Macnaught Industrial Flowmeters are constructed utilizing a robust
stainless steel body suitable for use in the harshest environments.
Our bearing-less PTFE/PPS rotors provide exceptionally low
pressure drop and can even be used in gravity fed applications.
This unique rotor design ensures minimal wear resulting in many
years of reliable service. This approach has proven over time to

Applications
• Chemical batching
• Additive Injection
• Hydraulicteststands
• High temperature
chemical processes
• High pressure chemical
processes
• Food and beverage batch
processes
• Ethanol blending and
production
• Pulp and Paper

Another benefit of our unique rotor design is simplicity of repair.
With only 2 moving parts,

our meters are simple to repair, require
minimal repair parts stock, and can even be repaired inline, resulting
in less downtime.

Oval gear flowmeters are ideally suited to applications requiring
accurate dispense quantities.

Measurement of very low flow
rates, pulsating flow, small batch sizes, viscous products, and
non-conductive liquids are all ideal uses for oval gear meters.

Because these meters don’t require flow conditioning, no straight
piping runs are required,

so they can be used in installations where
space is limited without effecting performance.
With 12 mechanical and digital display options to choose from,
Macnaught flowmeters are the perfect choice to suit virtually any
application requirement.

KAMI JUGA MENYEDIAKAN FLOW METER SOLAR DENGAN MERK LAINNYA: AC Diesel Fuel Tranfer Pump Super Rite
