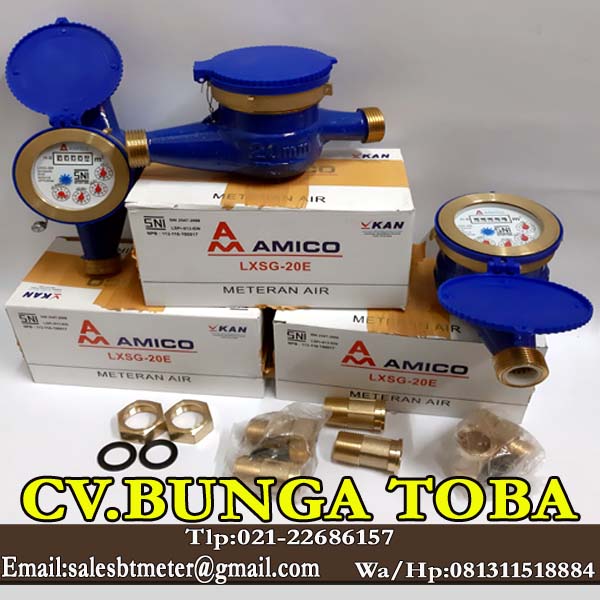

Meteran air bersih Merk Amico dn 20 mm

Distributor Water meter Amico dn 20 mm / Jual Amico 3/4 Inchi

AMICO 2 Inchi Water meter
Amico water meter DN 50 mm lxsg-50 E Call for Price
water meter amico 1,5 inchi
Amico Water meter 1,5 inch Call for Price

Call for Price

In Stock

Amico water meter 3/4 Inchi |Jual Water meter amico dn 20 mm | Meteran air amico

Water meter

Merk: AMICO

SIZE: DN 20 mm atau 3/4 Inchi

WATER METER AMICO
WORKING CONDITION :
• Water Temperature : 50 deg
• Working Pressure : 1Mpa
• Specialist for Apartment
SPECIAL FEATURES :
• Large measuring range, high flow accuracy
• Steady curve Characteristic
• Performance is up to standards ISO 4064
METER DESIGN :
• Solid and robust design, long service guaranteed
• Universal Interchangeable measuring insert
• Cleaning without breaking the seal is possible
• Dia, 15-40 mm connections with whitwort pipe thread
• Anti-magnet mechanism
NOMINAL DIAMETER mm 15 20 25 32 40
Inches ½” ¾” 1” 1 ¼” 1 ½”
MAXIMUM FLOW RATE (Q MAX) M3/h 3 5 7 12 20
NOMINAL FLOW RATE (Qn) M3/h 1,5 2,5 3,5 6 10
TRANSITIONAL FLOW RATE (Qt) M3/h 0,12 0,2 0,28 0,48 0,8
MINIMUM FLOW RATE (Q Min) M3/h 0,03 0,05 0,07 0,12 0,2
ACCURACY WITHIN (Q Max – Q Min) Q Max – Qt + 2 %
Q Max – Qt + 2 %
WORKING PRESSURE BARS 10 10 10 10 10
STARTING FLOW RATE M3/h 0,012 0,016 0,020 0,020 0,050
MAX READING M3 999.999.999 9.999.999.999
MIN READING M3 0,0001 0,001
INSTALATION POSITION
Add to Wishlist
Compare
Tag:

Description

Distributor Water meter Amico dn 20 mm

Amico Water Meter dn 20 mm lxsg-20E
Amico Water Meter dn 20 mm lxsg-20E

Harga Flow meter Amico

AMICO water meter air  3/4 inchi dn 20 mm high quality flow meters  in the WATER measurement fi eld. Our fl owmeters are used in a wide variety of applications including measuring of boiler fuel oil and diesel oil, as well as for transactions for kerosene, light oil and heavy oil. We have been serving numerous customers with accurate, compact, and excellent durability fl owmeters.

Features :

● High accuracy Accuracy is within ±0.2%  Fluid is directly measured by turbin , enabling accurate measuring.

● Compact design The flowmeter is compactly designed, yet the indicator is easy to read.

●Excellent durability Simple structure enables long term durability with virtually no degradation of accuracy.

Harga AMICO flow meter Air BERSIH

  • Flow meter air merk amico size 2 inch
  • water meter amico tipe lxsg 50-E

AMICO water meter air

  • ‐ Easy Installation and Maintenance
    ‐ Dry Dial, Magnetic Drive
    ‐ High Bypass and Very Low Head Loss
    ‐ Glass Vacuum Sealed Register -Free
    from Condesation and clear for long term
    ‐ Working Temperature 0.10C – 500C for
    Cold and 0.10C – 900C for Hotwater
    ‐ Max Pressure: 16 Bar
    ‐ Maximum Error : +/- 2%
    ‐ Selected High Quality Materials
    ‐ Iso 4064
    ‐ Warranty 2 Year

Distributor Water meter Amico dn 20 mm

AMICO ukuran 2,3,4 inch dengan Adjuster untuk aplikasi WATER,  flow meter digunakan untuk mengukur volume air yang akan digunakan.berbagai macam merek flow meter yang sering kita jumpai, seperti flow meter AMICO, flow meter SENSUS, Flow meter Avery Hardoll, dan masih banyak lainnya.salah satu flow meter dengan akurasi yang bagus adalah merk AMICO, flow meter AMICO kami jual dan berbagai ukuran tergantung kebutuhan anda.
Flow meter Minyak Merk AMICO adalah salah satu flow meter Air BERSIH yang berfungsi untuk mengetahui penggunaan air atau seberapa liter atau meter kubik air yang telah melewati alat ini.Flow meter air Merk BERSIH sangat banyak digunakan di pabrik, perusahaan industri, Pertamina, PLN, baik perusahaan lainnya yang menggunakan air sebagai salah satu media yang dibutuhkan.

Data Sheet :

Size Diameter                                          : 2″3″4″5″6″”8″ inch
‐ Easy Installation and Maintenance
‐ Dry Dial, Magnetic Drive
‐ High Bypass and Very Low Head Loss
‐ Glass Vacuum Sealed Register -Free
from Condesation and clear for long term
‐ Working Temperature 0.10C – 500C for
Cold and 0.10C – 900C for Hotwater
‐ Max Pressure: 16 Bar
‐ Maximum Error : +/- 2%
‐ Selected High Quality Materials
‐ Iso 4064
‐ Warranty 2 Year

refrensi water meter yang lainnya:

water meter amico 2 inchi tipe LXSG 50 E
